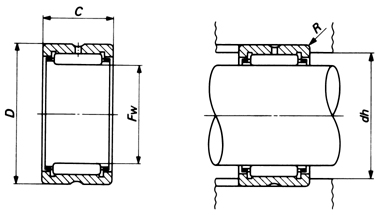

无内圈实体套圈滚针轴承 BR 英制系列 ㈡

无内圈滚针轴承 英制


轴径

轴承型号

外型尺寸

mm

标准装配尺寸

mm

基本额定负荷

极限转速

动

C

静

Co

mmWDCdh MaxR(2) Maxkgfkgfrpm
15.875BR10181215.87528.57519.05024.50.61930201025000
19.050BR12201219.05031.75019.05026.512220249020000
BR12201619.05031.75025.40026.512810338020000
22.225BR14221222.22534.92519.05029.712340277018000
BR14221622.22534.92525.40029.712970376018000
25.400BR16241225.40038.10019.05032.912580325016000
BR16241625.40038.10025.40032.913280442016000
28.575BR18261628.57541.27525.4003613560509014000
BR18262028.57541.27531.7503614410669014000
31.750BR20281631.75044.45025.40039.213670545013000
BR20282031.75044.45031.75039.214550718013000
34.925BR22301634.92547.62525.40042.413930612011000
BR22302034.92547.62531.75042.414870806011000
38.100BR24331638.10052.38835.40045.11.54460682011000
BR24332038.10052.38831.75045.11.55530898011000
41.275BR26351641.27555.56225.40048.31.5457072309500
BR26352041.27555.56231.75048.31.5567095309500
44.450BR28371644.45058.73825.40051.51.5485079809000
BR28372044.45058.73831.75051.51.56010105009000
BR28382044.45060.32531.75053.11.56010105009000
47.625BR30392047.62561.91231.75054.71.56130110008500
50.800BR32411650.80065.08825.40057.81.5520091108000
BR32412050.80065.08831.75057.81.56440120008000
57.150BR 36482457.15076.20038.100691.59200161007000
BR 36482857.15076.20044.450691.510700195007000
63.500BR 40522463.50082.55038.10074.329640177006500
BR 40522863.50082.55044.45074.3211200214006500
69.850BR 44562469.85088.90038.10080.7210100193005500
BR 44562869.85088.90044.45080.7211700233005500
76.200BR 48602476.20095.25038.10087210700216005500
BR 48602876.20095.25044.45087212400261005500
82.550BR 52682882.550107.95044.45099.7214400264005000
BR 52683282.550107.9550.80099.7215700295005000
88.900BR 56723288.900114.30050.800106.1216500321004500
95.250BR 60763295.250120.65050.800111.42.517200349004000
101.600BR 648032101.600127.00050.800117.82.51800037500>4000

TN=塑料保险架，允许运转温度：120℃连续地，150℃临时地，180℃短时地。2)对于脂润滑，允许值为表列数值的60%。0双列。
