[平面推力滚柱轴承] 平面推力滚柱轴承 WS,GS ㈢

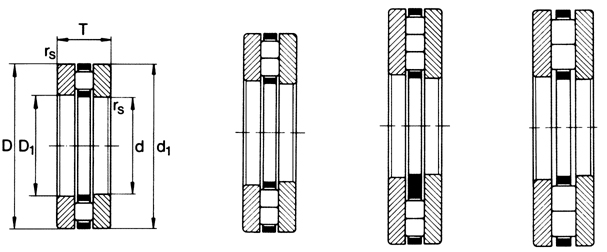

平面推力滚柱轴承 811,812,893,874,894

811,812, 893,874,894

K893 K874 K894 GS WS LS

轴径	型号	推力-圆柱滚子和保持架组件	推力轴承垫圈系列			尺寸
mm	型号	型号	座圈	座圈	轴承垫圈	DC1 d	D1
65	81113TN	K811 13 TN	GS811 13	WS811 13	LS 6590	65	67
	812 13TN	K 812 13 TN	GS 812 13	WS 812 13		65	67
	89313TN	K893 13 TN	GS893 13	WS893 13		65	67
	874 13	K 874 13	GS874 13	WS874 13		65	68
	894 13 TN	K 894 13 TN	GS 894 13	WS 894 13		65	68
70	811 14 TN	K811 14 TN	GS11 14	WS11 14	LS 7095	70	72
	812 14 TN	K812 14 TN	GS812 14	WS812 14		70	72
	893 14 TN	K 893 14 TN	GS893 14	WS893 14		70	72
	874 14	K 874 14	GS 874 14	WS 874 14		70	73
	894 14	K 894 14	GS 894 14	WS 894 14		70	73
75	811 15 TN	K 811 15 TN	GS 811 15	WS 811 15	LS 75100	75	77
	812 15 TN	K 812 15 TN	GS 812 15	WS 812 15		75	77
	893 15 TN	K 893 15 TN	GS 893 15	WS 893 15		75	77
	874 15	K 874 15	GS 874 15	WS 874 15		75	78
	894 15	K 894 15	GS 894 15	WS 894 15		75	78
80	811 16 TN	K 811 16 TN	GS 811 16	WS 811 16	LS 80105	80	82
	812 16 TN	K 812 16 TN	GS 812 16	WS 812 16		80	82
	893 16 TN	K893 16 TN	GS893 16	WS893 16		80	82
	874 16	K874 16	GS874 16	WS874 16		80	83
	894 16	K 894 16	GS 894 16	WS 894 16		80	83
85	811 17 TN	K 811 17 TN	GS 811 17	WS 811 17	LS 85110	85	87
	812 17 TN	K 812 17 TN	GS 812 17	WS 812 17		85	88
	893 17	K893 17 TN	GS893 17	WS893 17		85	88
	874 17	K874 17	GS 874 17	WS 874 17		85	88
	894 17	K 894 17	GS 894 17	WS 894 17		85	88
90	811 18 TN	K 811 18 TN	GS 811 18	WS 811 18	LS 90120	90	92
	812 18TN	K 812 18 TN	GS 812 18	WS 812 18		90	93
	893 18	K 893 18	GS 893 18	WS 893 18		90	93
	874 18	K 874 18	GS 874 18	WS 874 18		90	93
	894 18	K 894 18	GS 894 18	WS 894 18		90	93
100	811 20 TN	K 811 20 TN	GS 811 20	WS 811 20	LS 100135	100	102
	812 20	K 812 20	GS 812 20	WS 812 20		100	103
	893 20	K 893 20	GS 893 20	WS 893 20		100	103
	874 20	K 874 20	GS 874 20	WS 874 20		100	103
	894 20	K 894 20	GS 894 20	WS 894 20		100	103

接上表

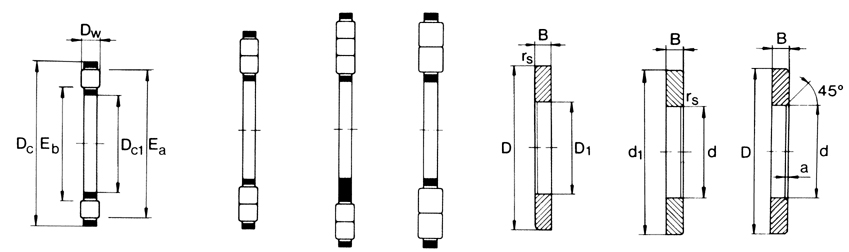

外型尺寸						滚道尺寸		基本额定负荷N		极限转速 n1grease≈ min-1
Dc	d1	T	Dw	B	a rs min.	Eb	Ea	动 C	静 Co	极限转速 n1grease≈ min-1
90	90	18	7.5	5.25	1	67	87	107000	340000	3100
100	100	27	11	8	1	69	96	177000	500000	2900
115	115	30	9	10.5	1.1	71	113	194000	670000	2600
140	140	34	10	12	2	72	137	300000	1140000	2300
140	140	45	15	15	2	70	135	445000	1410000	2300
95	95	18	7.5	5.25	1	72	92	111000	365000	2900
105	105	27	11	8	1	74	102	187000	550000	2700
125	125	34	10	12	1.1	76	123	239000	830000	2400
150	150	36	11	12.5	2	76	147	360000	1380000	2200
150	150	48	16	16	2	78	147	450000	1390000	2100
100	100	19	7.5	5.75	1	78	97	105000	340000	2700
110	110	27	11	8	1	79	106	172000	500000	2600
135	135	36	11	12.5	1.5	81	132	285000	1010000	2200
160	160	28	12	13	2	80	157	430000	1660000	2000
160	160	51	17	17	2	84	156	500000	1580000	2000

上接下表

105	105	19	7.5	5.75	1	83	102	106000	350000	2600
115	115	28	11	8.5	1	84	112	201000	630000	2400
140	140	36	11	12.5	1.5	86	137	305000	1110000	2100
170	170	41	12	14.5	2.1	89	167	450000	1810000	1900
170	170	54	18	18	2.1	89	166	560000	1770000	1900
110	110	19	7.5	5.75	1	87	108	112000	385000	2500
125	125	31	12	9.5	1	90	119	217000	660000	2300
150	150	39	12	13.5	1.5	93	147	325000	1140000	2000
180	180	42	13	14.5	2.1	92	176	485000	1920000	1800
180	180	58	19	19.5	2.1	94	176	620000	1980000	1800
120	120	22	9	6.5	1	93	117	141000	465000	2300
135	135	35	14	10.5	1.1	95	129	290000	890000	2100
155	155	39	12	13.5	1.5	98	152	330000	1200000	1900
190	190	45	13	16	2.1	102	186	510000	2090000	1700
190	190	60	20	20	2.1	100	186	680000	2200000	1700
135	135	25	11	7	1	104	131	199000	650000	2000
150	150	38	15	11.5	1.1	107	142	285000	840000	1900
170	170	42	13	14.5	1.5	109	167	380000	1400000	1700
210	210	50	15	17.5	3	110	206	680000	2800000	1500
210	210	67	22	22.5	3	112	206	850000	2850000	1500
